Microprocessor & Microcontroller Trainers ("LCD" Type)


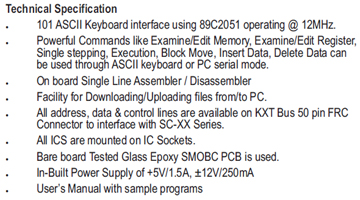

1302L - 8085 Microprocessor Training kit with LCD Display
  Feature:
  • Based on 8085 CPU operating at 6.144 Mhz.
  • 8K bytes of Powerful Monitor Program using 27512 EPROM 8K bytes of RAM using 6264 with Battery Backup using NICD Battery.
  • On-board one memory expansion up to 56KB.
  • Three Channel Timer/Counter using 8253 brought out at 10 Pins FRC Connector.
  • 48 I/O lines provided through 8255 brought out at 26 Pins FRC Connector to interface with IC-XX Series.
  • RS-232C interface through SID/SOD lines
  • Two mode of commands:
    - ASCII Key pad Mode
    - Serial Mode
  • 20x2 Alphanumeric LCD Display with Backlite.

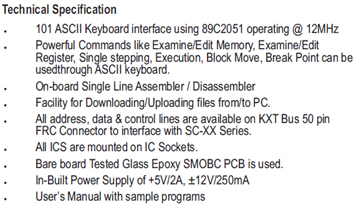

1303L - 8086/8088 microprocessor Trainer kit with LCD Display
  Feature:

  • 8086/8088 CPU operating at 2.5/5MHz
  • 8086 Processor can be replaced by 8088 Processor
  • On-board sockets provided to facilitate the use of 8087 Co-processor and 8089 I/O Processor
  • 16K bytes of RAM using two nos. of 6264 with Battery Backup expandable up to 256KB
  • 16K bytes of powerful monitor EPROM using two nos. of 27512
  • 72 I/O lines through 3 nos. of 8255 brought at 26 Pins FRC Connector to interface with IC-XX Series
  • 16 bit Timer/Counter through 8253 brought out at 20 Pins FRC Connector.
  • RS-232C interface using 8251 brought out at 9 Pins D-Type Connector.
  • On-board Interrupt controller using 8259 brought out at 20 Pins FRC Connector
  • 20x2 Alphanumeric LCD Display with Backlite.
